Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

Name: Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
Brand: Seagull
Price: 1 USD

Quality Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp wholesale

Brand Name : Seagull

Model Number : DHQ

Certification : CE

Place of Origin : CHINA,Jiangsu

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000

Delivery Time : 30 days

Packaging Details : High quality double wall carton and steel pallets outside.

Material : steel

Warranty : 1 year

Condition : New

Usage : Construction hoist

Color : Optional

Contact Now

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

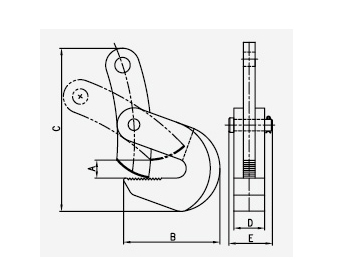

A tool for lifting plate type items. Usually used for clamping and lifting of steel plate.

Model	DHQ-0.8	DHQ-1	DHQ-1.6	DHQ-2	DHQ-3	DHQ-4	DHQ-5	DHQ-6	DHQ-6(B)	DHQ-8	DHQ-10
Rated capacity(t)	0.8	1.0	1.6	2.0	3.0	4.0	5.0	6.0	6.0	8.0	10.0
Test load	1.6	2.0	3.2	4.0	6.0	8.0	10.0	12.0	12.0	16.0	20.0
Jaw opening(mm)	0-25	0-30	0-30	0-40	0-45	0-50	0-55	0-65	0-130	0-100	0-125
Net Weight(mm)	2.5	3.5	4.0	5.0	6.0	6.5	7.5	10.5	22.0	22.0	33.0

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

Model	DHQA-1	DHQA-2	DHQA-3	DHQA-5	DHQA-6	DHQA-10
Rated capacity(t)	1	2	3	5	6	10
Test load	2	4	6	10	12	20
Jaw opening(mm)	0-30	0-50	0-60	10-80	10-100	20-120
Net Weight(mm)	4	5.5	8	11.5	14.5	30

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

Model	DHQL-0.8	DHQL-1	DHQL-1.6	DHQL-2.5	DHQL-2.5(B)	DHQL-3	DHQL-3(B)	DHQL-5	DHQL-5(B)
Rated capacity(t)	0.8	1.0	1.6	2.5	2.5	3.0	3.0	5.0	5.0
Test load	1.6	2.0	3.2	5.0	5.0	6.0	6.0	10.0	10.0
Jaw opening(mm)	0-15	0-20	0-25	0-30	25-50	0-40	30-60	0-50	50-80
Net Weight(mm)	2	4	6.5	11	11	12.5	12.5	19	20

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

Model	DHQK-3	DHQK-4.5	DHQK-6	DHQK-8	DHQK-15
Rated capacity(t)	3.0	4.5	6.0	8.0	15.0
Test load	6.0	9.0	12.0	16.0	30.0
Jaw opening(mm)	0-180	0-240	0-240	0-240	0-240
Net Weight(mm)	19	26	40	51	72

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

Model	DHQP-1.5	DHQP-3	DHQP-5
Rated capacity(t)	1.5	3.0	5.0
Test load	3.0	6.0	10.0
Jaw opening(mm)	0-50	0-50	0-60
Net Weight(mm)	4.3	6	12

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
Steel plate clamp type has a lot of, the applicable scope is very wide ,for example, shipyard , installation of steel structure , steel market, machining, cutting steel, steel plate handling, etc.

Steel plate clamp light weight, simple structure, easy to use. These products made from low carbon alloy steel forging quality. Ensure the impact resistant capacity, bearing capacity, ductility, and elongation of such tools.

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
These products made from low carbon alloy steel forging quality. Ensure the impact resistant capacity, bearing capacity, ductility, and elongation of such tools.
